Description
Features :
- Amplifier Technology Class AB
- CIRRUS LOGIC 32Bit DSP and 24Bit/192KHz ADC/DAC
- Signal Converter : CS47048C-DQZR – RMS Power : 6*40W@4ohm, 6*70W@2ohm

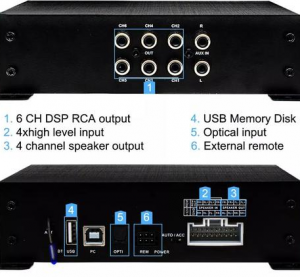

- Multi sources input : 4CH High Level In , 2CH Aux in,Optical In
- 6CH DSP RCA output and 4 CH amplifier output (RMS 4*25W@4ohm,
4*50w@2ohm) - Speaker Impedance : 4Ω / 2Ω
- Low noise JRC4580 op am
- Input impedance highlevel : 8Ω
- Input Impedance : 20KΩ
- Frequency Response : 20Hz – 20KHz
- Input Sensitivity : hi input 4-10V, low input 0.5-2V
- Operating voltage : 9-16V
- THD : <1%
- Signal-to-noise ratio analog input : 101dB
- SNR : 91 – 100dB, >85dB@1W
- External Bluetooth Version 5.0
- Dimension : 162*104*42mm
